Specifications

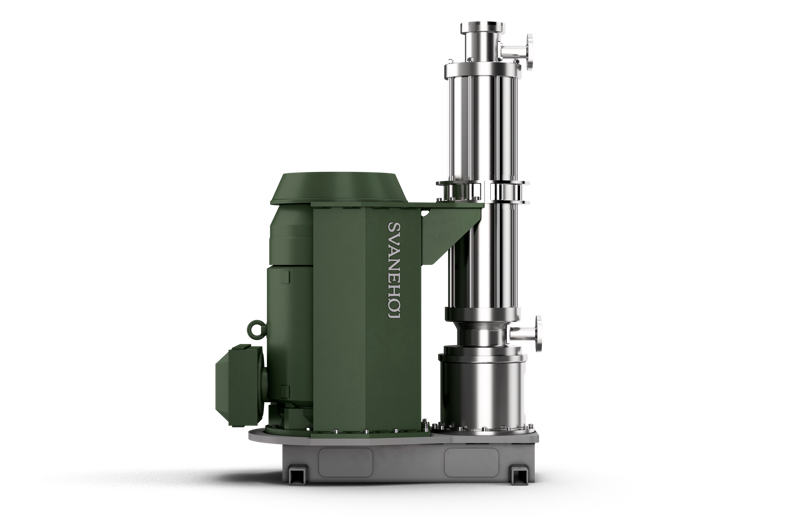

The NH3 Fuel Pump represents the latest advancement in ammonia fuel pump technology, engineered to handle high-pressure applications with the highest standards of safety and reliability. Utilizing Svanehoj’s well-proven pump technology, this pump features a simple yet robust design, ideal for managing the complexities of ammonia as a fuel.
Operating parameters:
- Model: HP NH3 Fuel Pump (10-stages)
- Fuel: Ammonia (NH3)
- Type: Centrifugal
- Inlet pressure: 20 barg
- Outlet pressure: 85 barg
- Head: 1200mlc (w. 10 stages, Δp = 65bar @ SG = 0.55)
- Capacity e.g.: 30m3/hr @ 5840 rpm
- 37m3/hr @ 6000rpm (max)
- Control Method: VFD
- MTBR: 20.000 hrs.
- Motor: Standard flameproof (Ex de) motor
- Very small footprint (height, width, length): S2100mm, 780mm, 1420mm
Leveraging the same trusted pump technology for both pressure ranges
Svanehoj is the only supplier offering this dual capability, leveraging the same trusted pump technology for both pressure ranges. This consistency across LP and HP pumps not only simplifies the installation process but also reduces the complexity and cost of maintenance, as customers benefit from a unified proven approach.
Advantages and benefits of the NH3 Fuel Pump
